产品描述

Name	Value	Unit

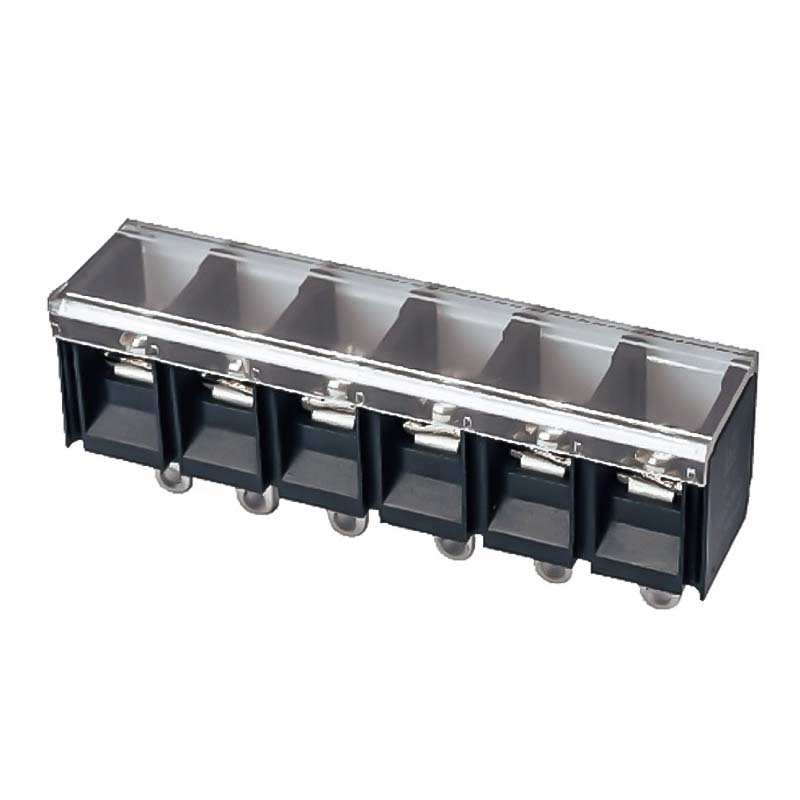

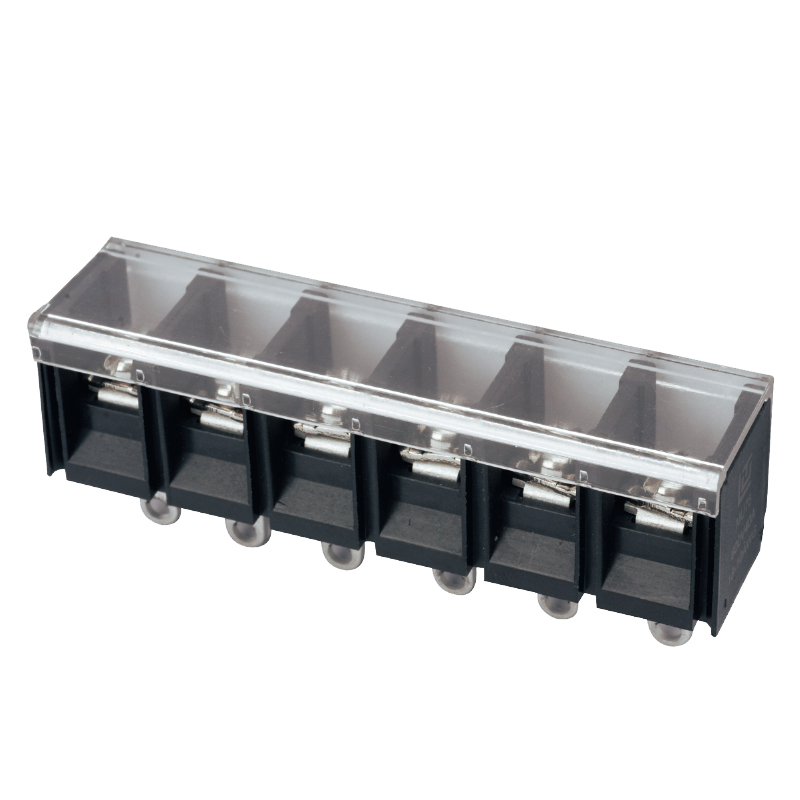

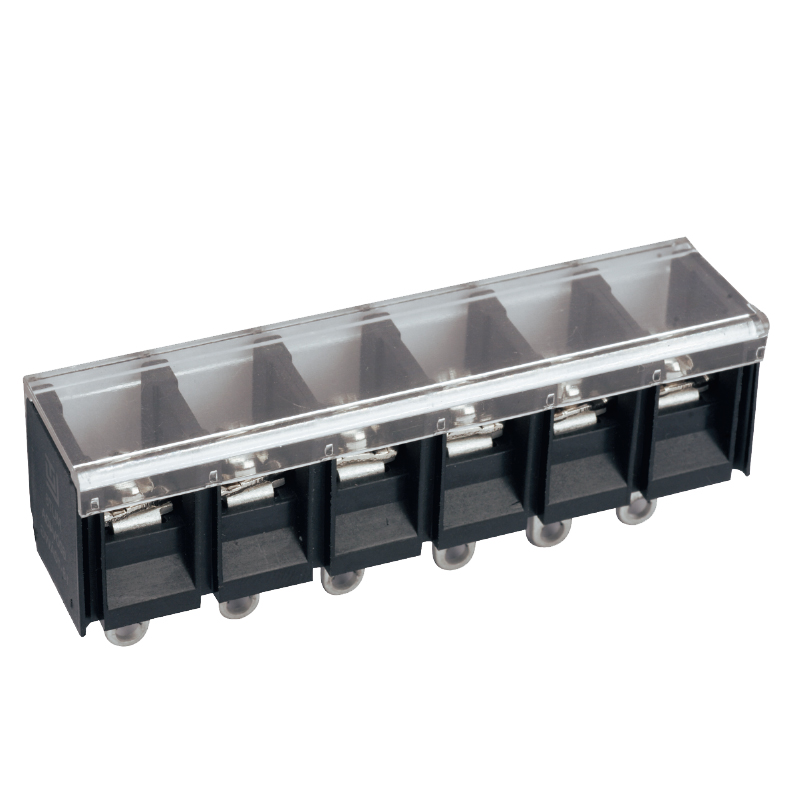

Model	BU13C/HE
Pitch	13	mm
Position	2-24P
Length	L=13*P+3.3	mm
Width	20	mm
Hight	22	mm
PCB aperture	2.5	mm²
Material Group	Ⅰ
Standard	IEC60947
Rated Voltage	600	V
Rated Current	40	A
Single wire minimum wiring capacity	1.0/18	mm²/AWG
Single wire maximum connection capacity	6.0/10	mm²/AWG
Multi-strand minimum wiring capacity	1.0/18	mm²/AWG
Multi-strand maximum wiring capacity	6.0/10	mm²/AWG
Line direction	Parallel to the PCB
Standard Torque	10.6Lb*in
Insulation Material	PBT
Flammability rating	UL94 V-0
Screw material	steel
Welding foot material	brass
