| Name | Date | Unit |

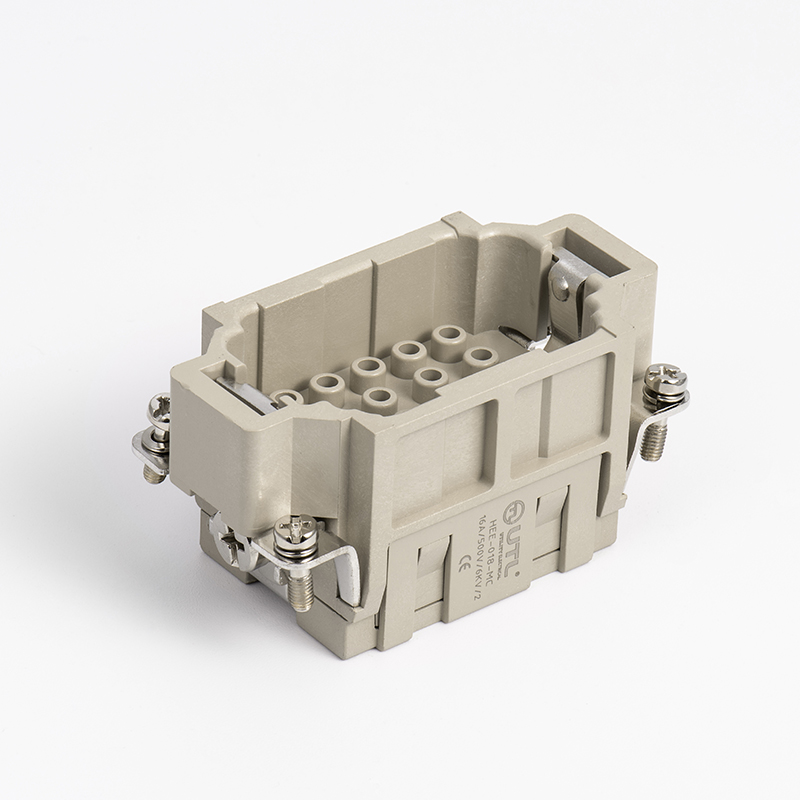

| Model | UTL-HEE-018-MC | |
| Type | Male | |
| Colour | Gray | |
| Number of contacts | 18 | |
| Length | 64 | mm |
| Width | 34.5 | mm |
| Height | 34 | mm |
| Standard |
IEC60664 IEC61984 |
|
| Rate voltage | 500 | V |
| Rate current | 16 | A |
| Pollution degree | Ⅲ | |
| Rate impulse voltage | 6 | KV |
| Insulation resistance | 1010 | Ω |
| Mechanical woking life | ≥500 | Times |
| Contact resistance | ≤1 | mΩ |
| Min.connection capacity for solid wire | 0.14/26 | mm2/AWG |
| Max.connection capacity for solid wire | 4/12 | mm2/AWG |
| Min.connection capacity for strand wire | 0.14/26 | mm2/AWG |
| Max.connection capacity for strand wire | 4/12 | mm2/AWG |
| Housing meterial | PC(UL94 V-0) | |
| Metal meterial | Copper alloy | |
| Operating temperature | -40℃～+125℃ | |
| Stripping length | 7.5 | mm |
| Certification |
|
