| Name | Date | Unit |
| Number of connection points | 3 | |
| Number of potentials | / | |

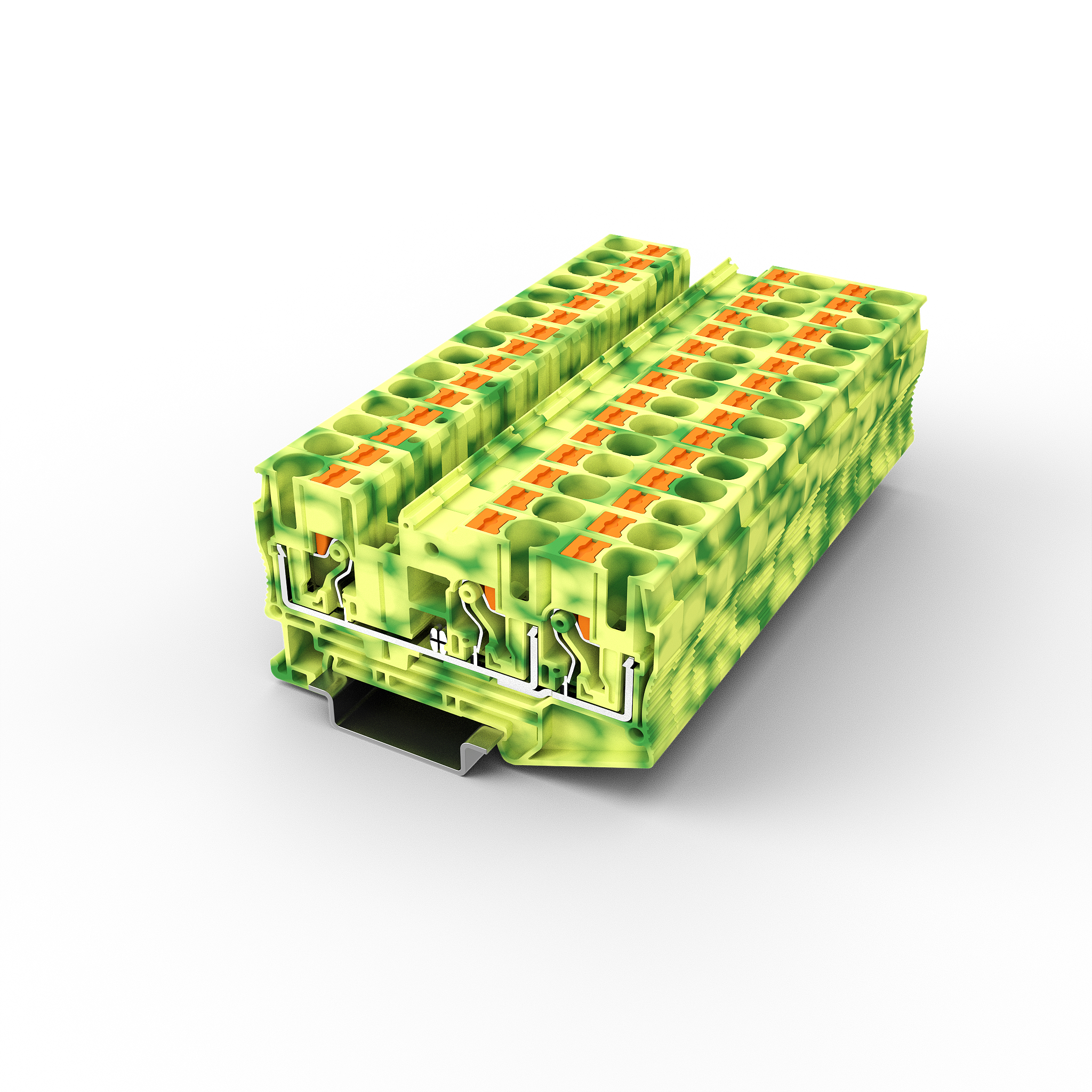

| Color |
Yellow-Green |
|
| Length | 74.1 | mm |
| Width | 8.2 | mm |
| With U-rail height | 43.7 | mm |
| Pollution degree | 3 | |
| Insulation material group | Ⅰ | |
| Rated surge voltage | 8 | KV |
| Meet standard① | IEC60947-7-2 | |
| Rated voltage ① | / | V |
| Nominal current① | / | A |
| Meet standard② | UL1059 | |
| Rated voltage② | / | V |
| Nominal current② | / | A |
| Min.connection capacity for solid wire | 0.5/20 | mm²/AWG |
| Max.connection capacity for solid wire | 10/8 | mm²/AWG |
| Min.connection capacity for strand wire | 0.5/20 | mm²/AWG |
| Max.connection capacity for strand wire | 10/8 | mm²/AWG |
| Line direciton |
Top connection |
|
| Strip length | 10-12 | mm |
| Insulation material | PA66 | |
| Flame-retarded Rating | UL94 V-0 | |
