Name

Date

Unit

Model

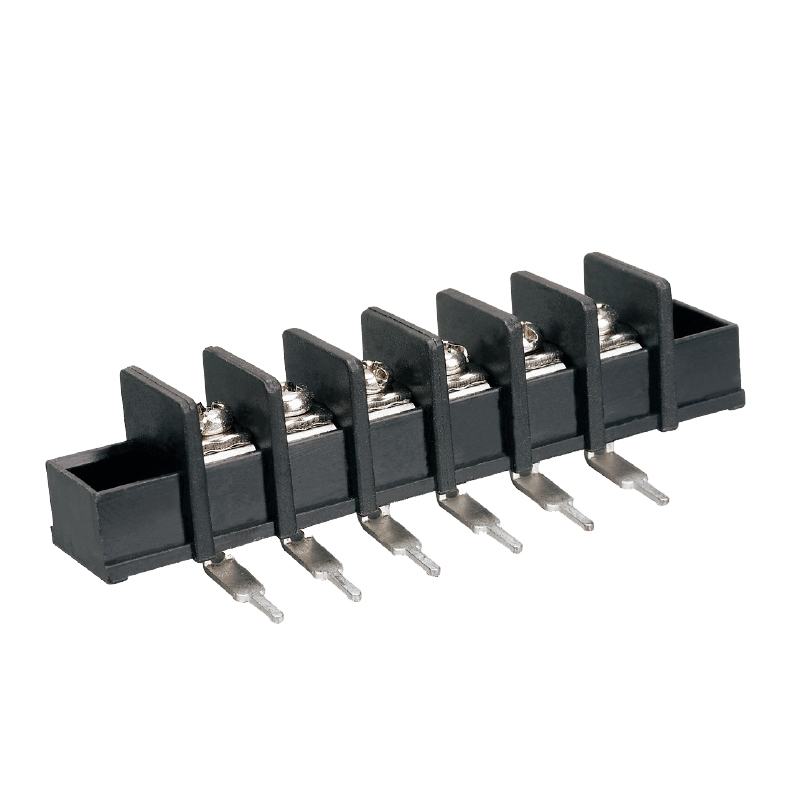

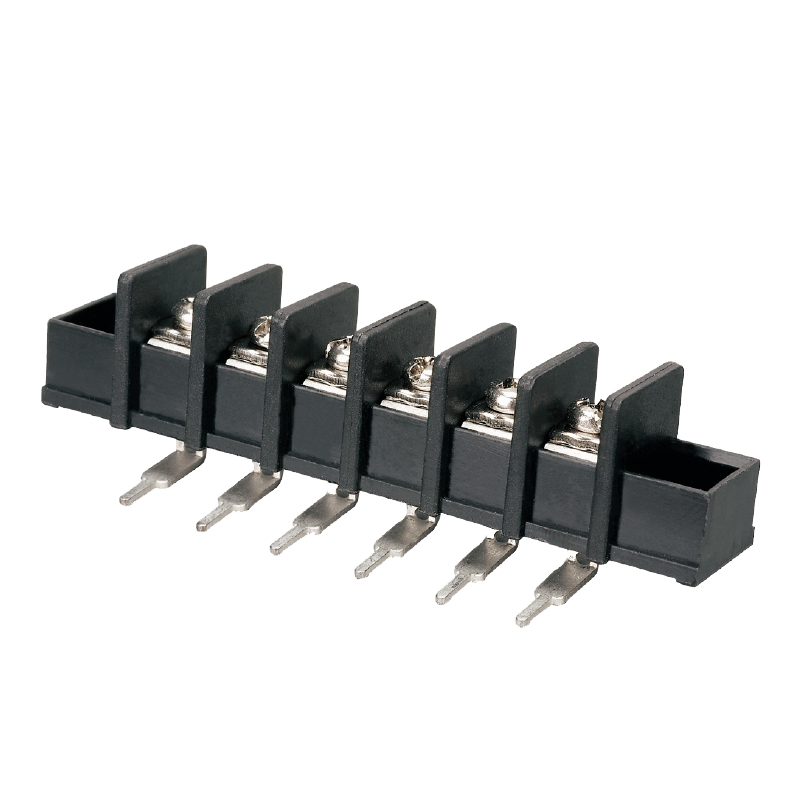

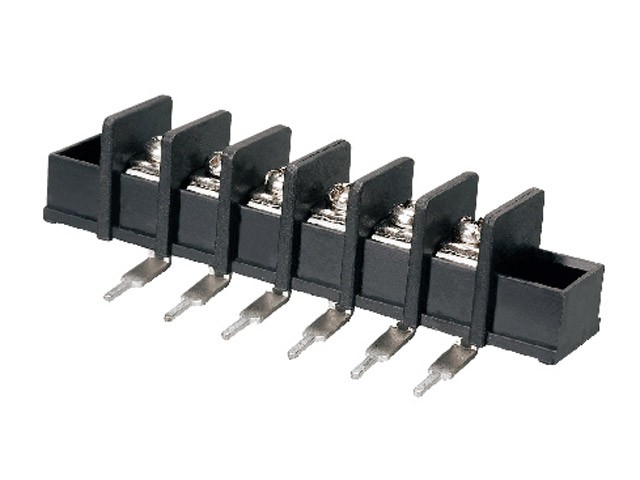

BU9.525F/VL

Pitch

9.525

mm

Digit

2-24

Length

L=9.5*(P-1)+10.9

mm

Width

16.3

mm

Height

18.4

mm

PCB hole dia

2.0

mm

Insulation material group

Ⅰ

Complied standard

IEC60947

Rated voltage

300

V

Nominal current

25

A

Min.connection capacity for solid wire

0.5/22

mm2/AWG

Max.connection capacity for solid wire

4.0/12

mm2/AWG

Min.connection capacity for strand wire

0.5/22

mm2/AWG

Max.connection capacity for strand wire

4.0/12

mm2/AWG

Line direciton

Perpendicular to the PCB

Screw torque

10.6Lb*in

Insulation material

PBT

Flame-retarded Rating

UL94 V-0

Screw material

Steel

Welding foot material

Brass
