产品描述

Name	Value	Unit

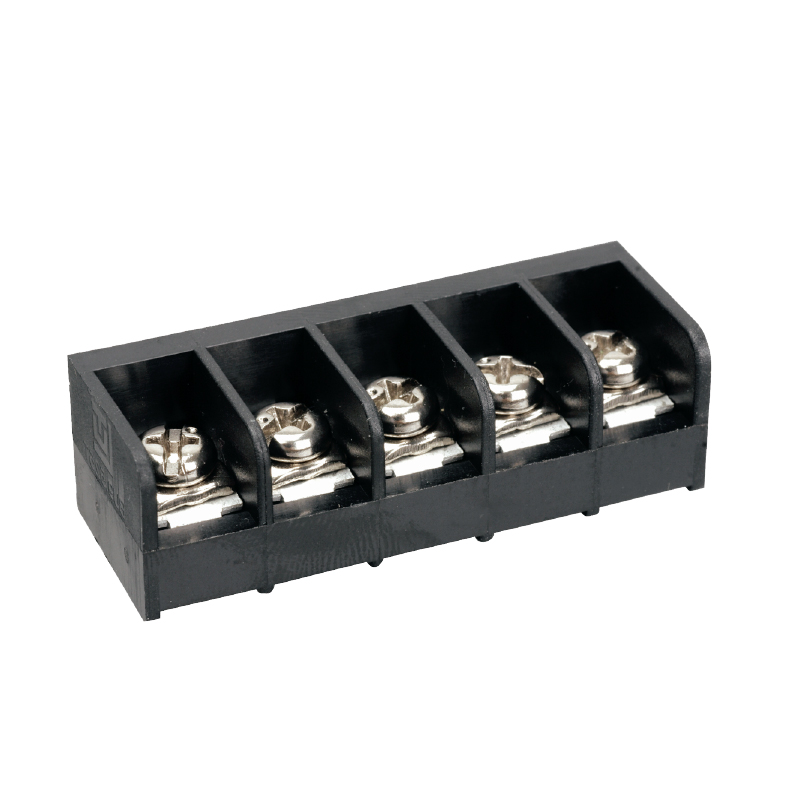

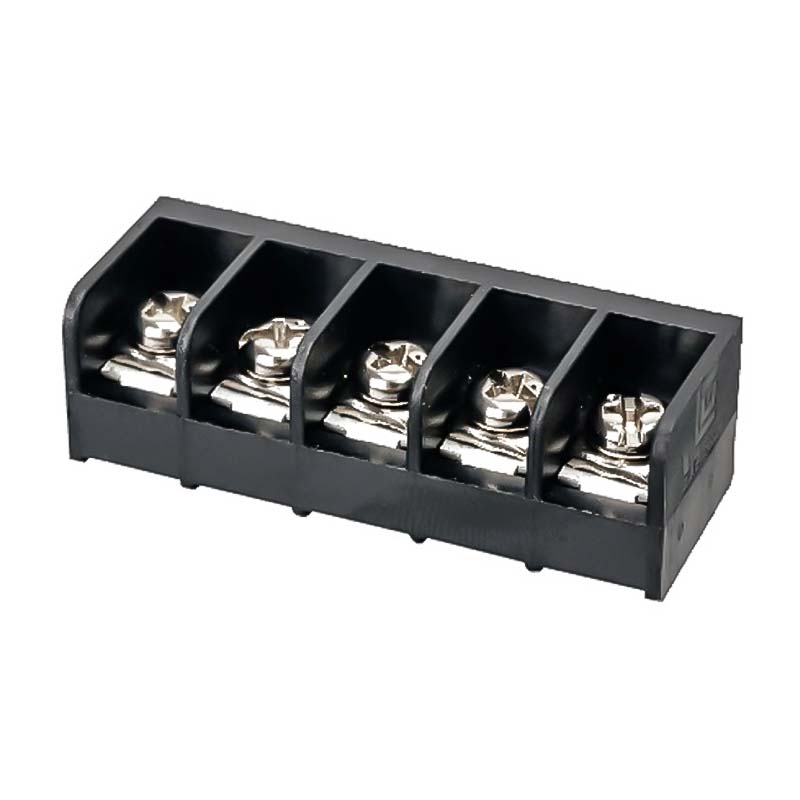

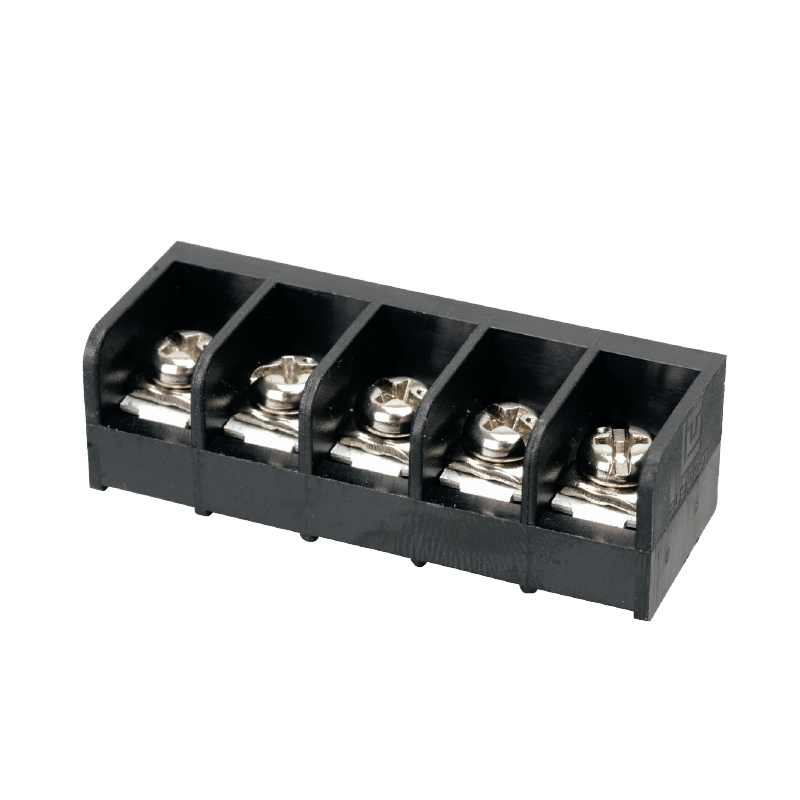

Model	BU9.525T/HR
Pitch	9.525	mm
Position	2-24P
Length	L=9.5*(P-1)+10.9	mm
Width	17.8	mm
Hight	15	mm
PCB aperture	2	mm²
Material Group	Ⅰ
Standard	IEC60947
Rated Voltage	300	V
Rated Current	25	A
Single wire minimum wiring capacity	0.5/22	mm²/AWG
Single wire maximum connection capacity	4.0/12	mm²/AWG
Multi-strand minimum wiring capacity	0.5/22	mm²/AWG
Multi-strand maximum wiring capacity	4.0/12	mm²/AWG
Line direction	Parallel to the PCB
Standard Torque	10.6Lb*in
Insulation Material	PBT
Flammability rating	UL94 V-0
Conductive material	steel
Welding foot material	brass
