产品描述

Name	Date	Unit

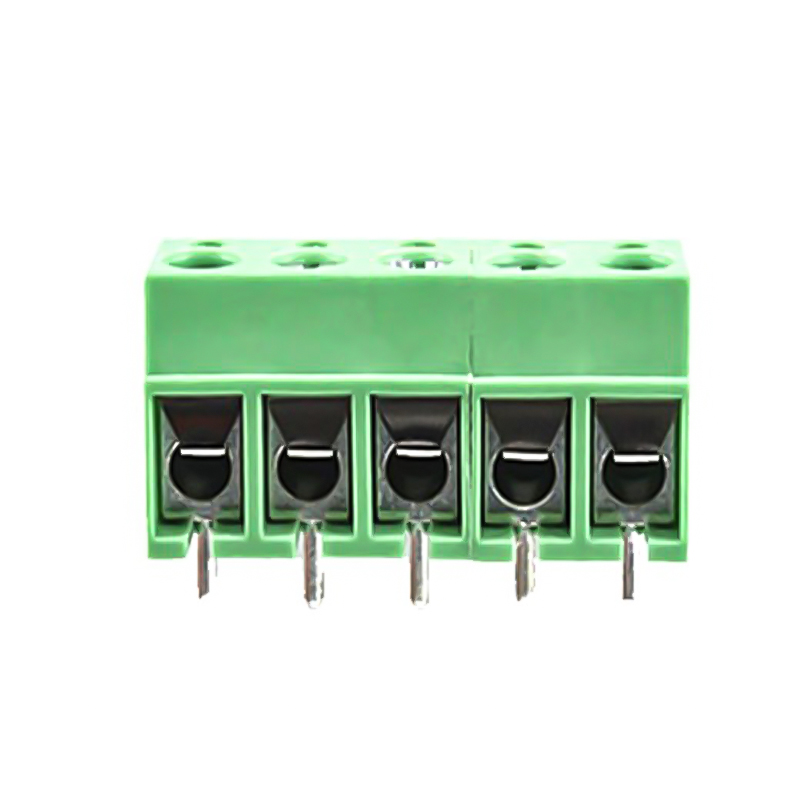

Model	MU2.5P/H5.0
Pitch	5.0	mm
Digit	2-24P
Length	L=N*P	mm
Width	9	mm
Height	12.6	mm
PCB Hole diameter	1.3	mm²
Insulation material group	Ⅰ
Complied standards①	IEC
Rated surge voltage（Ⅲ/3）①	4	KV
Rated surge voltage（Ⅲ/2）①	4	KV
Rated surge voltage（Ⅱ/2）①	4	KV
Rated voltage（Ⅲ/3）①	250	V
Rated voltage（Ⅲ/2）①	320	V
Rated voltage（Ⅱ/2）①	630	V
Nominal current①	24	A
Complied standards②	UL
Rated voltage②	300	V
Nominal current②	20	A
Min.connection capacity for solid wire	0.5/20	mm²/AWG
Max.connection capacity for solid wire	4/10	mm²/AWG
Min.connection capacity for strand wire	0.5/20	mm²/AWG
Max.connection capacity for strand wire	2.5/12	mm²/AWG
Line direciton	Parallel to PCB
Strip length	6.5	mm
Torgue	0.6	N*m
Insulation material	PA66
Inflammability class	UL94 V-0
Screw material	Steel
Pressure frame material	Brass
