产品描述

Name	Value	Unit

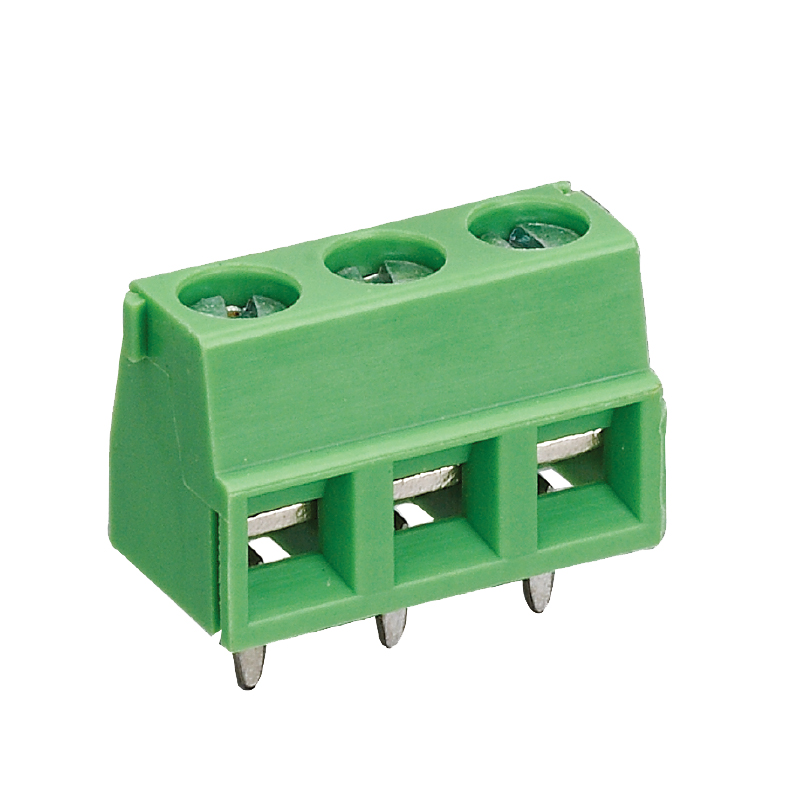

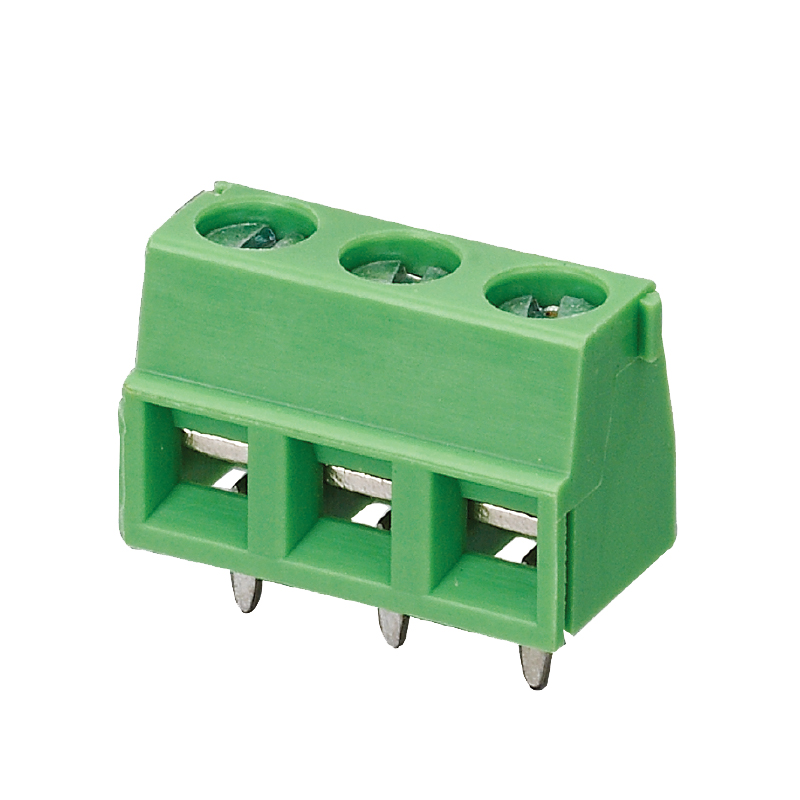

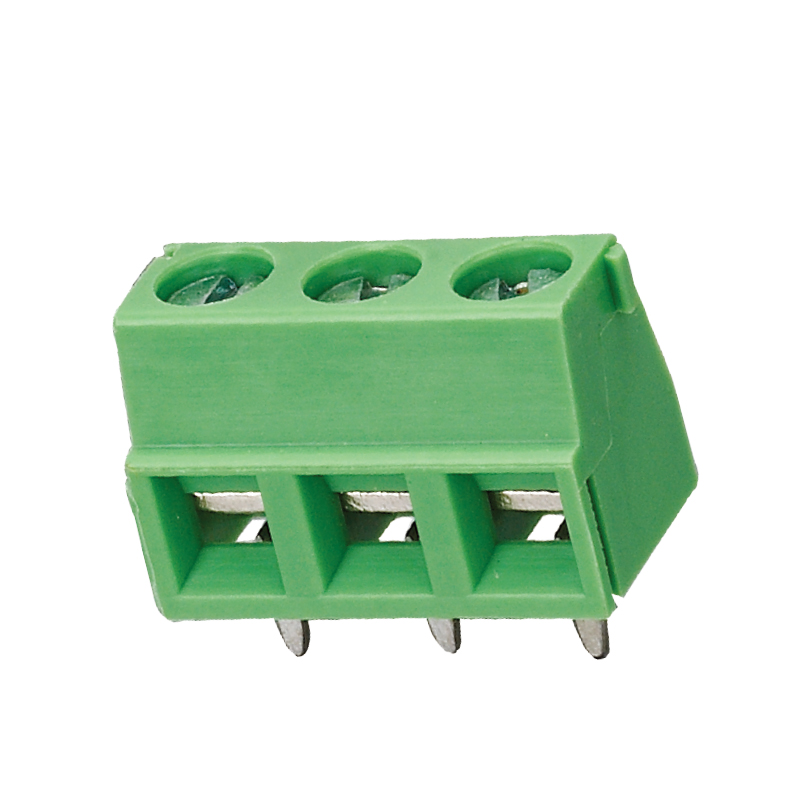

Model	MU1.5HM5.0
Pitch	5	mm
Position	2P to 24 P
Length	L=(N-1)*3.81+4.6	mm
Width	L=N*5.0	mm
Hight	8.2	mm
PCB aperture	10	mm²
Material Group	1.3
Standard ①	Ⅰ
Rated Voltage（Ⅲ/3）①	IEC	KV
Rated Voltage（Ⅲ/2）①	4	KV
Rated Voltage（Ⅱ/2）①	4	KV
Rated Voltage（Ⅲ/3）①	4	V
Rated Voltage（Ⅲ/2）①	250	V
Rated Voltage（Ⅱ/2）①	320	V
Rated Current ①	630	A
Standard②	17.5
Rated Voltage ②	UL	V
Rated Current②	300	A
Single wire minimum wiring capacity	0.14/30	mm²/AWG
Single wire maximum connection capacity	2.5/14	mm²/AWG
Multi-strand minimum wiring capacity	0.14/30	mm²/AWG
Multi-strand maximum wiring capacity	1.5/16	mm²/AWG
Line direction	Parallel to the PCB
Stripping length	6	mm
Rated torque	0.6	N*m
Insulation Material	PA66
Flammability rating	UL94 V-0
Conductive material	brass
Screw material	steel
Wire frame material	brass
Certificate	UL，VDE，TUV，CE
