产品描述

Name	Value	Unit

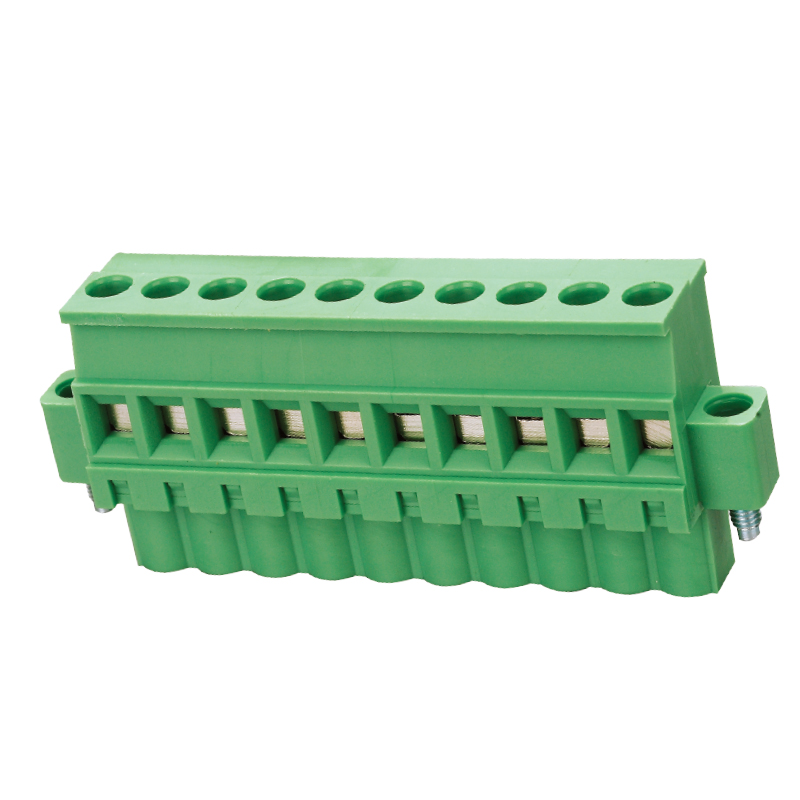

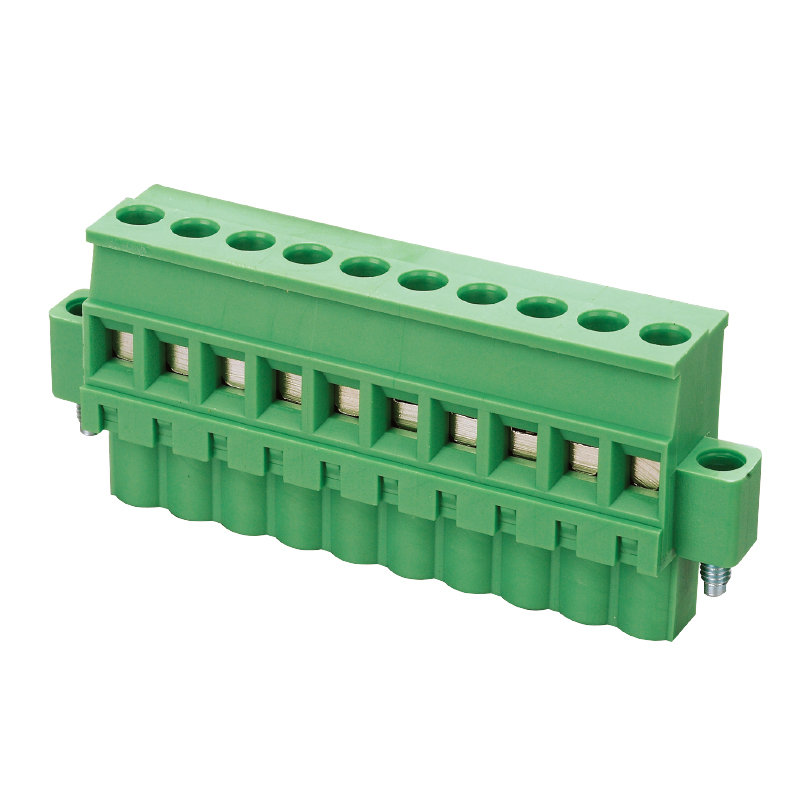

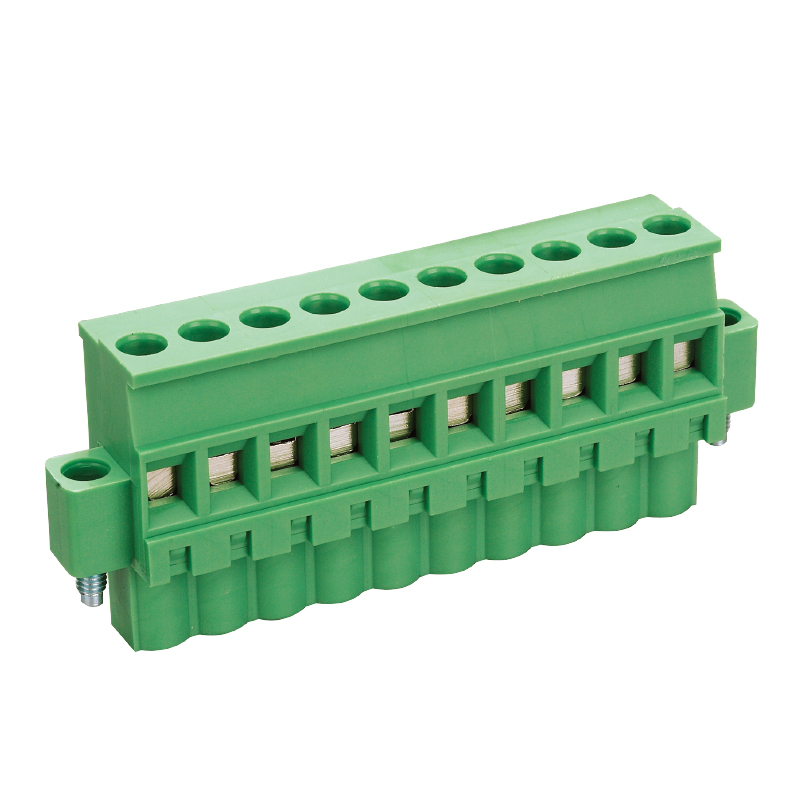

Model	MA2.5/VRF7.62
Pitch	7.62	mm
Position	2-24P
Length	L=（N-1)*P+5.62	mm
Width	12.6	mm
Hight	26	mm
Material Group	Ⅰ
Standard ①	IEC
Rated Voltage（Ⅲ/3）①	6	KV
Rated Voltage（Ⅲ/2）①	6	KV
Rated Voltage（Ⅱ/2）①	6	KV
Rated Voltage（Ⅲ/3）①	400	V
Rated Voltage（Ⅲ/2）①	630	V
Rated Voltage（Ⅱ/2）①	1000	V
Rated Current ①	18/2.5	A
Standard②	UL
Rated Voltage ②	300	V
Rated Current②	18	A
Single wire minimum wiring capacity	0.14/30	mm²/AWG
Single wire maximum connection capacity	2.5/12	mm²/AWG
Multi-strand minimum wiring capacity	0.14/30	mm²/AWG
Multi-strand maximum wiring capacity	2.5/12	mm²/AWG
Line direction	Vertical to the insertion and removal direction
Stripping length	7	mm
Standard Torque	0.6	N*m
Insulation Material	PA66
Flammability rating	UL94 V-0
Conductive material	Phosphor bronze
Screw material	M3 Steel
Wire frame material	brass
Certificate	UL，VDE，TUV，CE
