Model

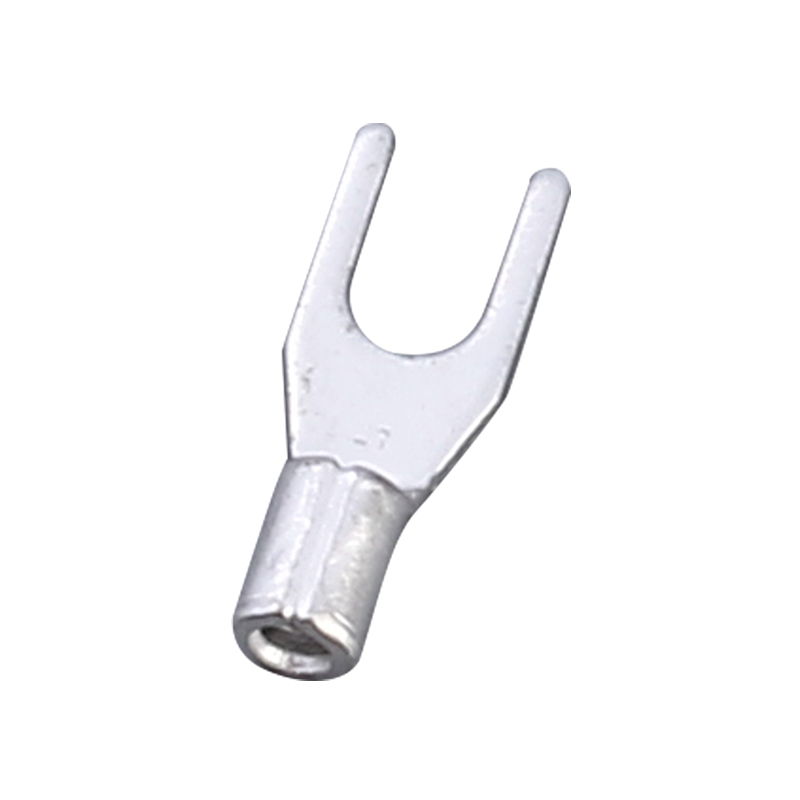

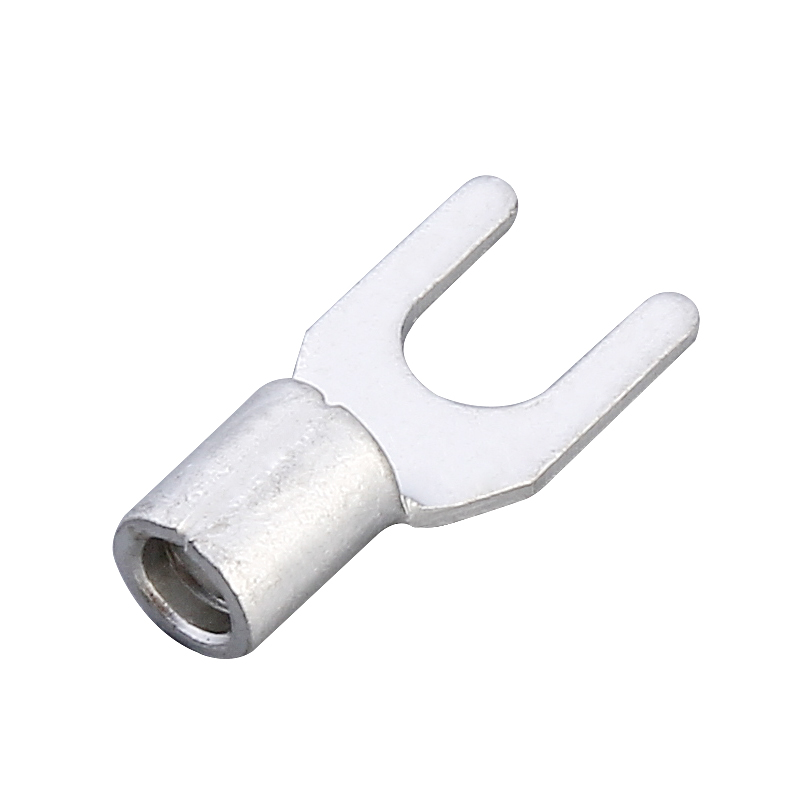

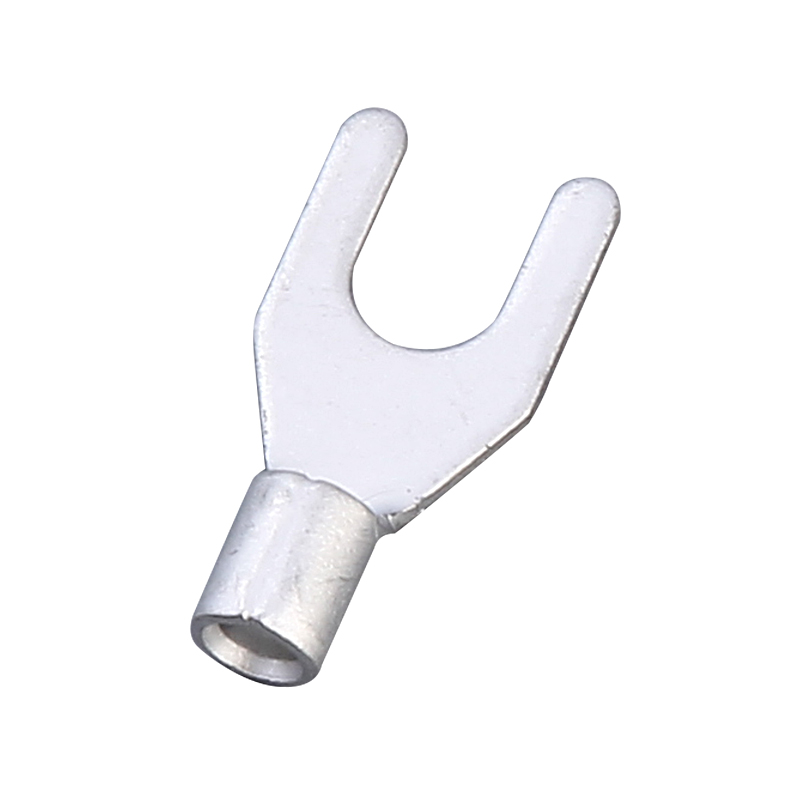

SNBS1.25-6

Min Wiring Capacity

0.5/22

mm²/AWG

Max Wiring Capacity

1.5/16

mm²/AWG

USA-made bolt number

1/4

Screw bolt mouth’s diameter d2

6.4

mm

Dimension B

9.5

mm

Dimension L

16

mm

Dimension F

6.5

mm

Dimension E

4.8

mm

Dimension D

3.4

mm

Dimension d

1.7

mm

Material

Red Copper

Material thickness

0.75

mm

Max current

19

A

Dimensional drawing
