| Name | Date | Unit |

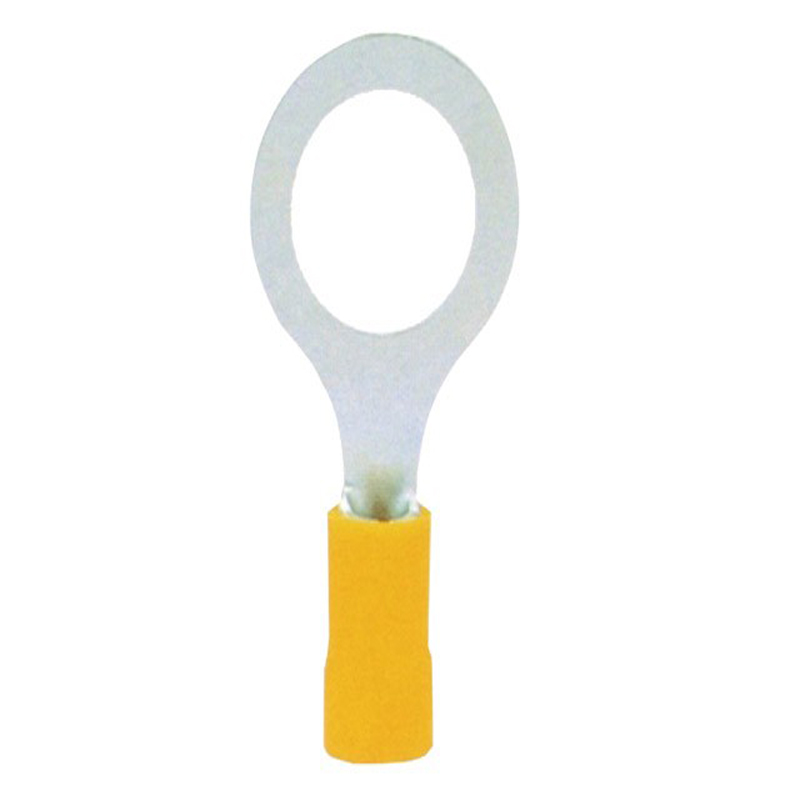

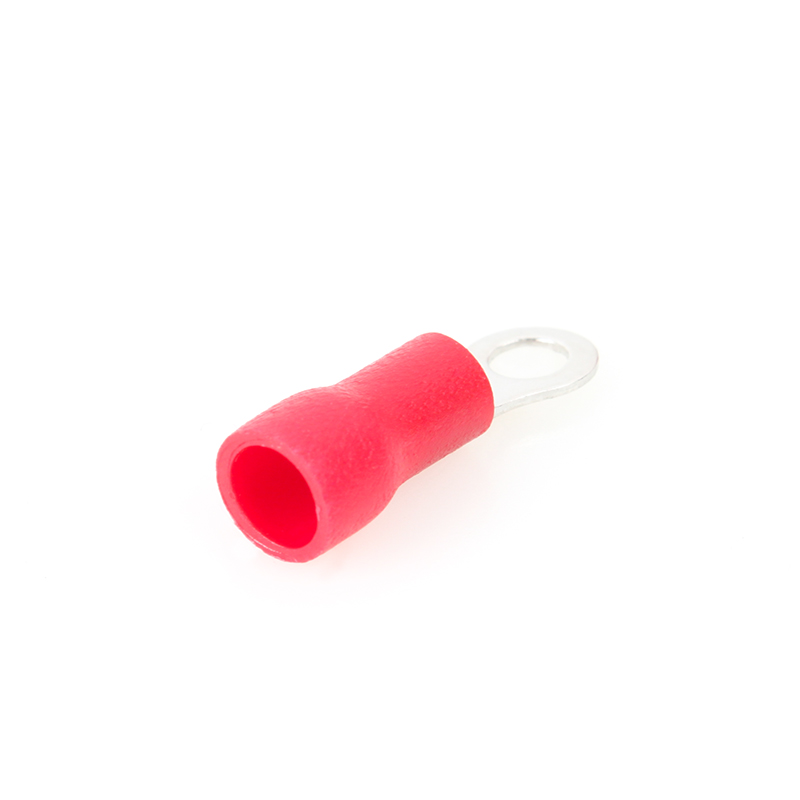

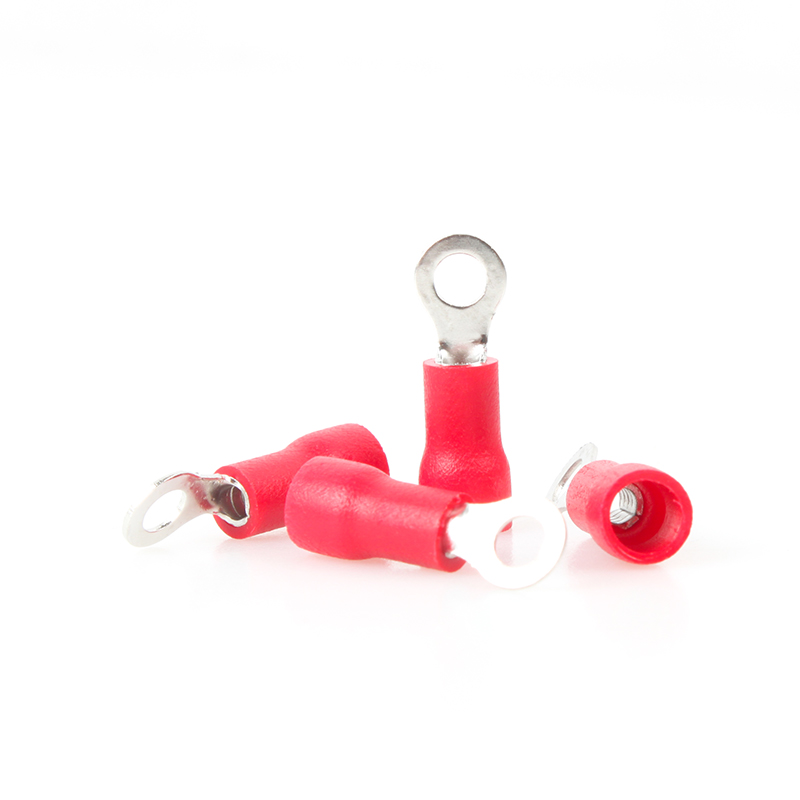

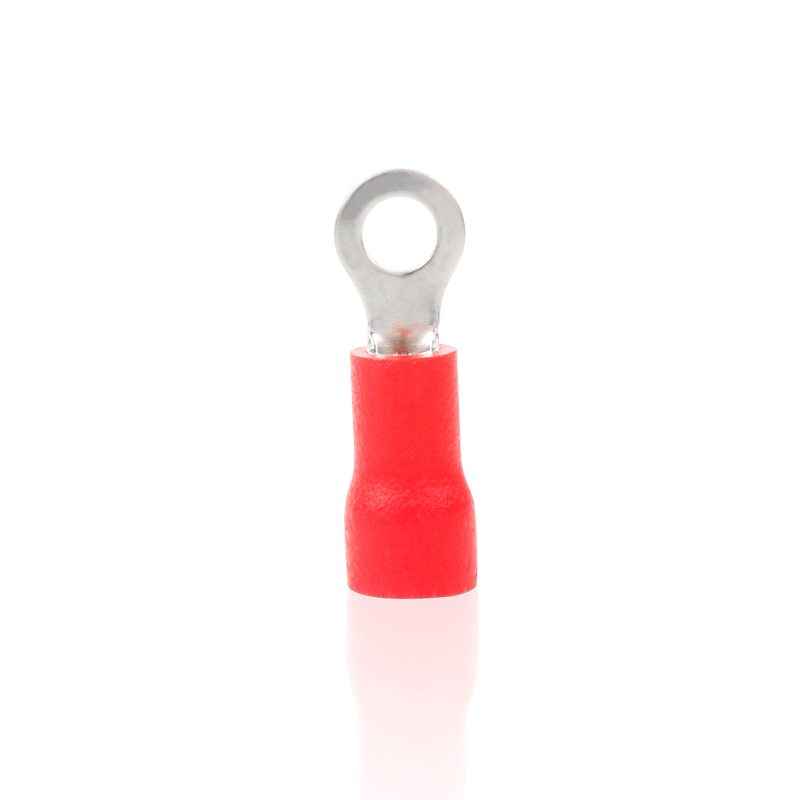

| Model | RVL38-8 | |
| Colour | Red;Yellow;Blue;White;Black | |
| Min Wiring Capacity | 35/2 | mm²/AWG |
| Max Wiring Capacity | 50/2 | mm²/AWG |
| USA-made bolt number | 5/16 | |
| Screw bolt mouth’s diameter d2 | 8.4 | mm |
| Dimension B | 22.0 | mm |
| Dimension L | 42.7 | mm |
| Dimension F | 17.7 | mm |
| Dimension E | 14 | mm |
| Dimension D | 13.3 | mm |
| Dimension d | 9.4 | mm |
| Material | Red Copper | |
| Material thickness | 1.8 | mm |
| Max current | 160 | A |
| Dimensional drawing |
 |
